KIWI Hardware / KW – 837337DB

KW – 837337DB

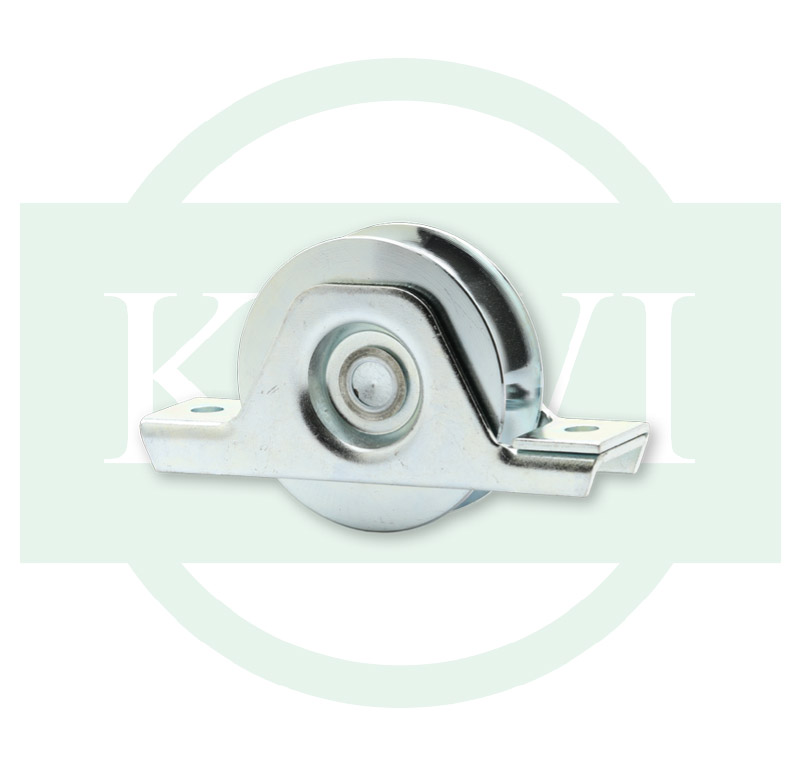

The KW-837337DB Heavy Duty Half-Support Sliding Gate Wheel with U-Groove is a robust solution designed for classical sliding gates, offering reliable support and smooth operation across heavy-duty applications. The wheel features a U-shaped groove that provides optimal alignment with the track, ensuring precise guidance and preventing lateral movement. Equipped with double weather-resistant bearings, it is built to withstand harsh outdoor conditions, reducing friction and enhancing long-term performance. The wheel is precision-machined, ensuring uniformity in size and groove shape for consistent rolling. Constructed from C40 steel, it delivers exceptional strength and wear resistance, making it perfect for high-traffic and demanding gate systems.

Category:

Description

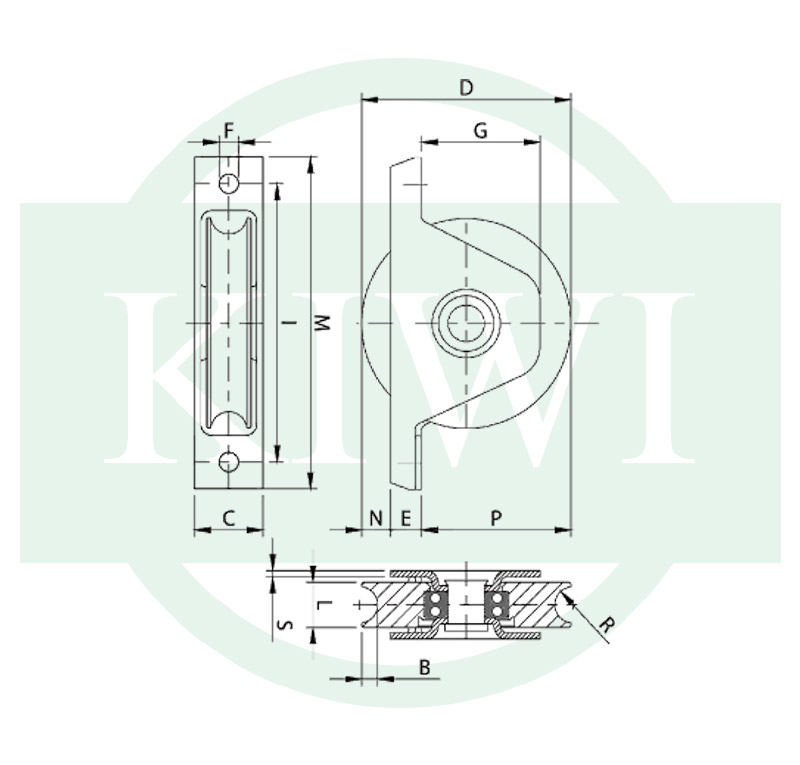

Article No.

B

(mm)

C

(mm)

D

(mm)

E

(mm)

F

(mm)

G

(mm)

I

(mm)

L

(mm)

M

(mm)

N

(mm)

P

(mm)

R

(mm)

S

(mm)

Load

(KG)**

KW-837337DB.60.20

8.5

36

Ø58

17

9

24

96

25

120

10

32

10.3

3

150

KW-837337DB.80.20

9.5

36

Ø78

17

9

38

110

24

135

14

50

10.3

3

350

KW-837337DB.100.20

9.5

36

Ø98

17

9

55.5

130

24

153

13

70

10.3

3

450

KW-837337DB.120.20

9.5

37

Ø117

17

9

65

150

25

181

16.5

85

10.3

3

700

KW-837337DB.140.20

9.5

40

Ø137

17

11

77

175

25

205

15

105

10.5

3

800

Download the submittal by clicking the button below.

Additional information

Finish

Galvanized

Material

Galvanized Steel
