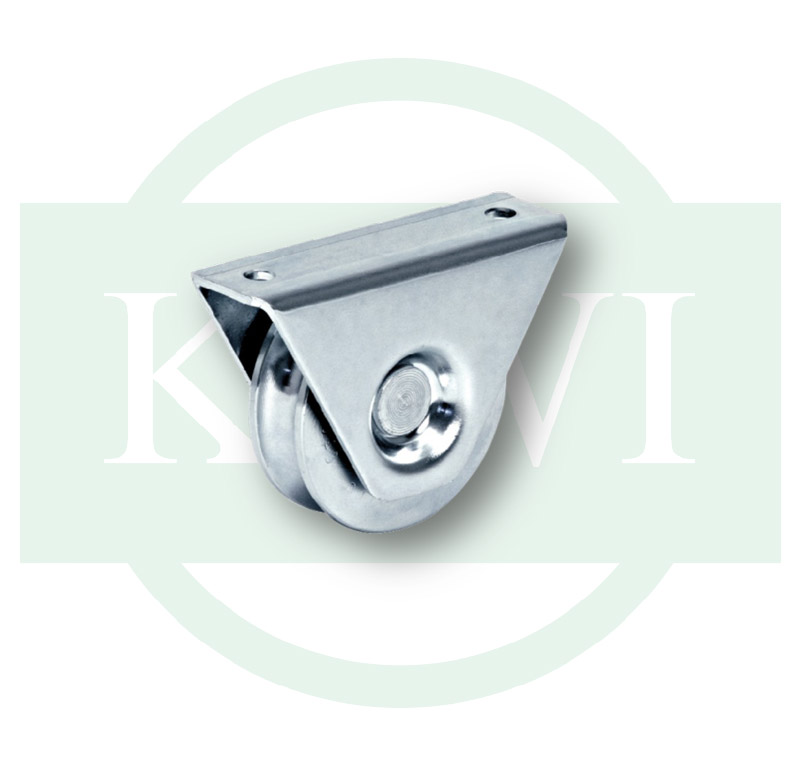

The KW-827327DB Full-Support Sliding Gate Wheel with U-Groove is a robust solution designed for classical sliding gates, offering reliable support and smooth operation across heavy-duty applications. The wheel features a U-shaped groove that provides optimal alignment with the track, ensuring precise guidance and preventing lateral movement. Equipped with double weather-resistant bearings, it is built to withstand harsh outdoor conditions, reducing friction and enhancing long-term performance. The wheel is precision-machined, ensuring uniformity in size and groove shape for consistent rolling. Constructed from C40 steel, it delivers exceptional strength and wear resistance, making it perfect for high-traffic and demanding gate systems.

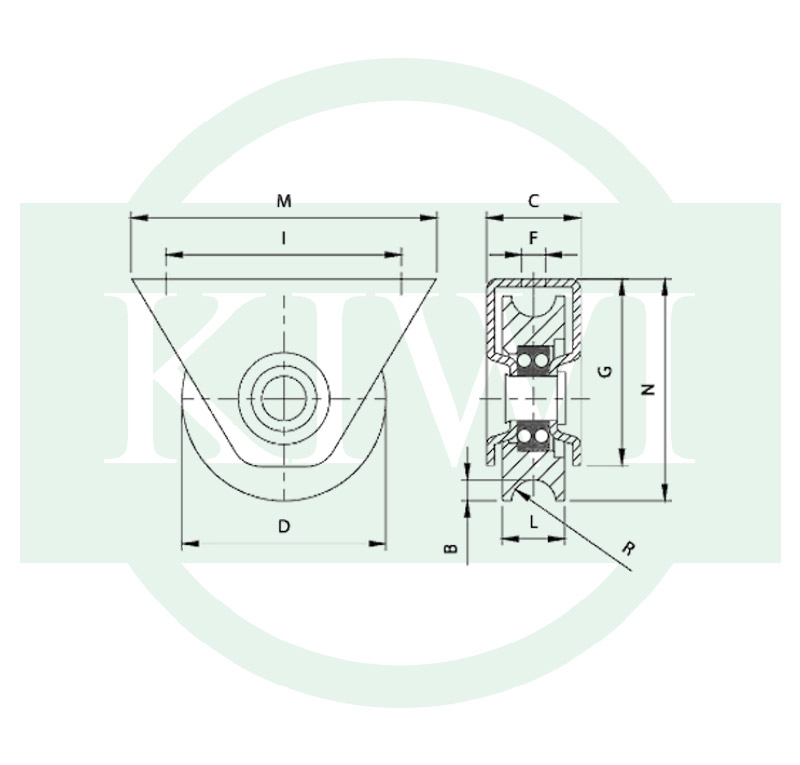

Article No. | B (mm) | C (mm) | D (mm) | F (mm) | G (mm) | I (mm) | L (mm) | M (mm) | N (mm) | R (mm) | Load (KG)** |
KW-827327DB.40.16 | 6.5 | 28 | Ø38 | 9 | 37 | 35 | 22 | 48 | 45 | 8.3 | 130 |
KW-827327DB.50.16 | 7 | 31 | Ø48 | 9 | 48 | 45 | 23 | 72 | 56 | 8.3 | 250 |
KW-827327DB.80.20 | 10 | 36 | Ø78 | 9 | 71 | 90 | 25 | 120 | 82 | 8.3 | 450 |
KW-827327DB.100.20 | 10 | 36 | Ø98 | 9 | 82 | 105 | 25 | 132 | 106 | 8.3 | 800 |
Download the submittal by clicking the button below.
| Finish | Galvanized |
|---|---|
| Material | Galvanized Steel |
