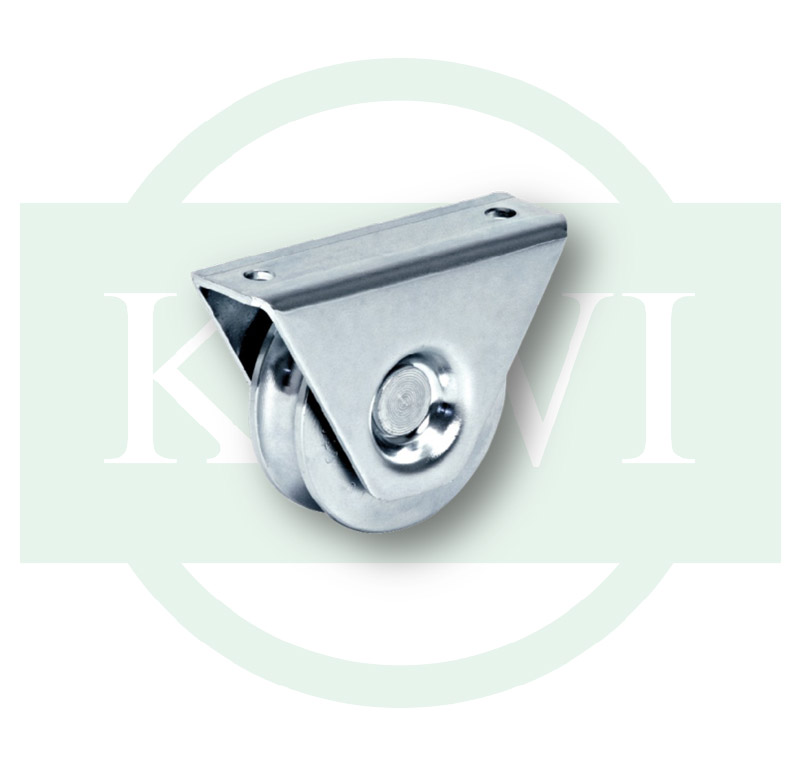

The KW-827327SB Full-Support Sliding Gate Wheel with U-Groove is a robust solution designed for classical sliding gates, offering reliable support and smooth operation across heavy-duty applications. The wheel features a U-shaped groove that provides optimal alignment with the track, ensuring precise guidance and preventing lateral movement. Equipped with a single weather-resistant bearing, it is built to withstand harsh outdoor conditions, reducing friction and enhancing long-term performance. The wheel is precision-machined, ensuring uniformity in size and groove shape for consistent rolling. Constructed from C40 steel, it delivers exceptional strength and wear resistance, making it perfect for high-traffic and demanding gate systems.

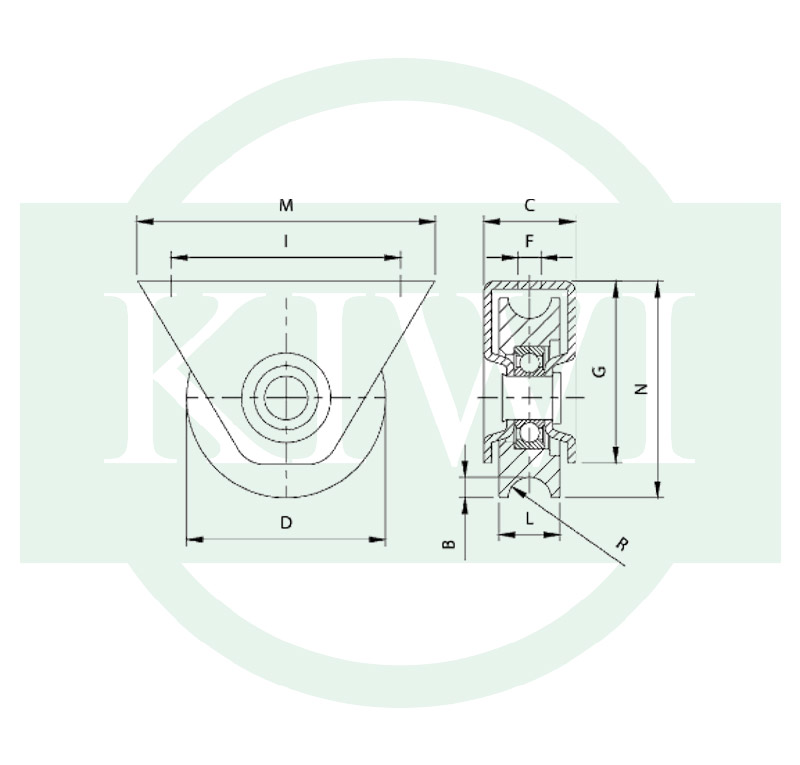

Article No. | B (mm) | C (mm) | D (mm) | F (mm) | G (mm) | I (mm) | L (mm) | M (mm) | N (mm) | R (mm) | Load (KG)** |
KW-827327SB.30.6 | 3 | 17 | Ø30 | 5.5 | 30 | 30.5 | 10 | 45 | 35 | 3.2 | 80 |
KW-827327SB.50.12 | 6 | 25 | Ø50 | 9 | 50 | 47 | 17 | 75 | 57 | 6.2 | 180 |
KW-827327SB.60.16 | 4 | 27 | Ø58 | 9 | 55 | 55 | 17 | 85 | 65 | 8.3 | 250 |
KW-827327SB.80.16 | 7.5 | 36 | Ø78 | 9 | 71 | 90 | 21 | 121 | 82 | 8.3 | 350 |
Download the submittal by clicking the button below.
| Finish | Galvanized |
|---|---|
| Material | Galvanized Steel |
