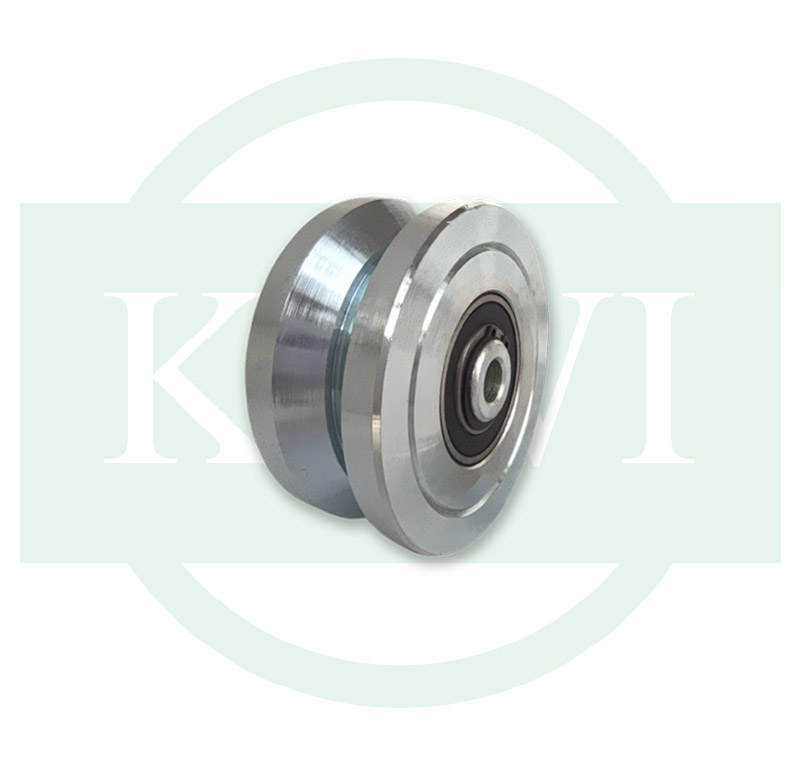

The KW-815318 Extra Heavy Duty Sliding Gate Wheel series are precision-engineered components designed to support and guide large and high-load sliding gates. These wheels bear the full operational weight of the gate while allowing effortless rolling along the bottom track, making them ideal for industrial, commercial, and residential sliding gate systems. Manufactured from C40 steel and equipped with double sealed bearings, these wheels deliver high load capacity and corrosion resistance even under continuous and demanding use.

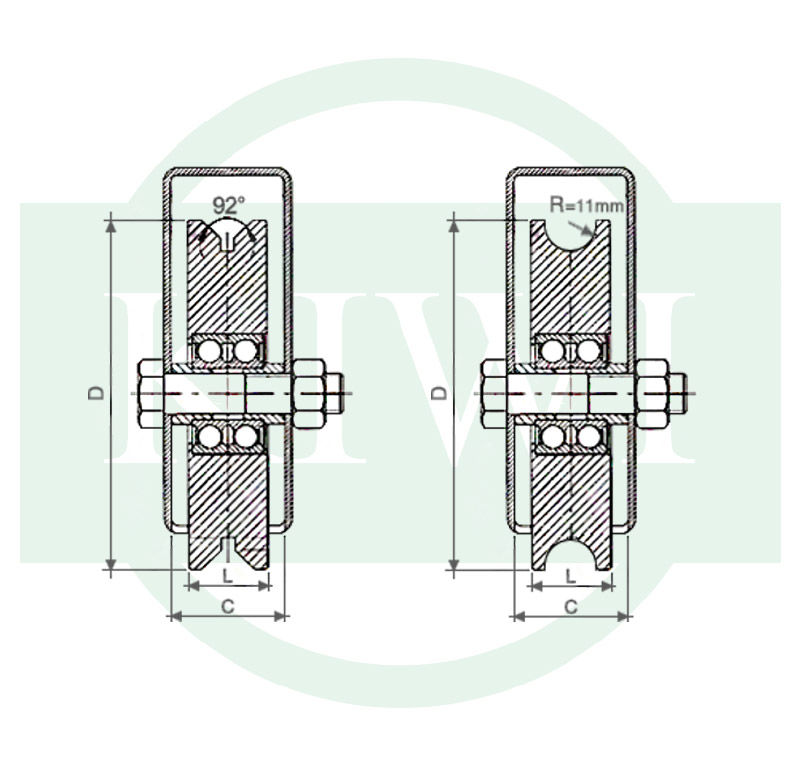

Article No. | C (mm) | D (mm) | L (mm) | Groove | Load (KG)** | Bolt (mm) |
KW-815318.102Y | 51 | Ø102 | 46 | Y | 1500 | M15*90 |
KW-815318.152Y | 48 | Ø152 | 43.5 | Y | 2500 | M15*90 |
KW-815318.102U | 51 | Ø102 | 46 | U | 1500 | M15*90 |
KW-815318.152U | 48 | Ø152 | 43.5 | U | 2500 | M15*90 |
Download the submittal by clicking the button below.
| Finish | Galvanized |
|---|---|
| Material | Galvanized Steel |
