The Top Rail for Hanging Gates is a precision-engineered guiding channel designed to support and control the movement of sliding gates from the upper side. It forms the primary track along which the gate travels, ensuring smooth, stable, and safe operation. Ideal in locations where bottom tracks are unsuitable due to uneven surfaces, slopes, or the need for unobstructed floor clearance.

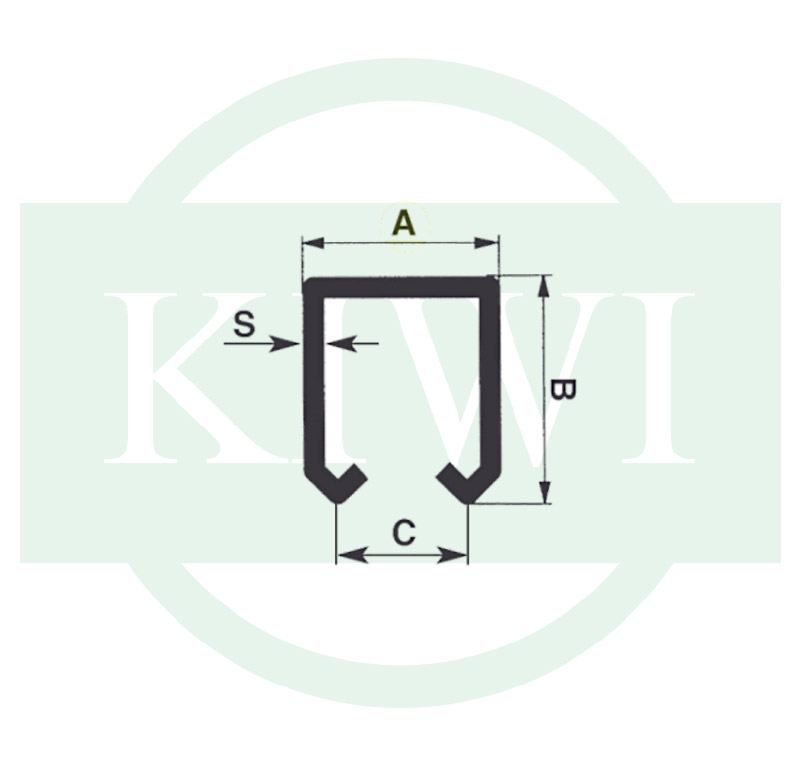

Article No. | A (mm) | B (mm) | C (mm) | S (mm) | Length (mm) | Load (KG)** |
KW-5339/P/2000 | 35 | 32 | 20 | 1.5 | 2000 | 200 |
KW-5339/P/4000 | 35 | 32 | 20 | 1.5 | 4000 | 300 |
KW-5339/N/5850 | 50 | 46 | 29 | 2 | 5850 | 800 |
KW-5339/M/6000 | 43 | 53 | 22 | 2.5 | 6000 | 950 |
KW-5339/L/5850 | 60 | 67 | 34 | 2 | 5850 | 1200 |
KW-5339/L/H/5850 | 60 | 67 | 31 | 3 | 5850 | 1500 |
Download the submittal by clicking the button below.
| Finish | Galvanized |
|---|---|
| Material | Galvanized Steel |
