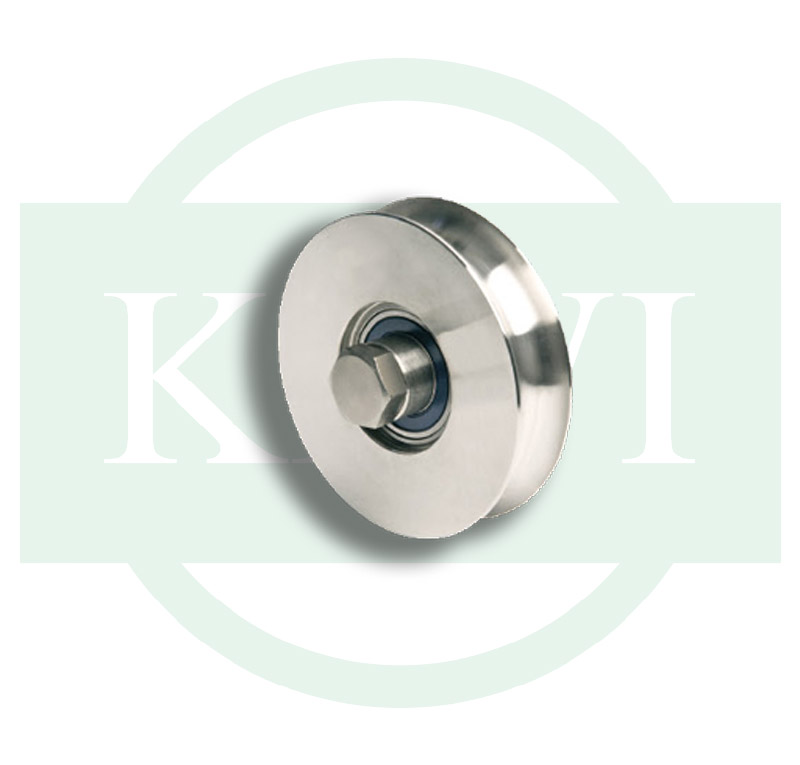

The KW-815315SS Heavy Duty Sliding Gate Stainless Steel SS304 Wheel with U-groove is a heavy-duty rolling component for bottom-rolling gate systems, designed to carry gate load and guide movement along a compatible ground track. The U-groove profile helps keep the wheel centered on the track, improving stability and reducing sideways drift. It includes double weather-resistant bearings to ensure smooth rotation while resisting dust and moisture in outdoor conditions. The wheel is precision turned on a lathe for accurate dimensions, better balance, and consistent rolling. Made from Stainless Steel 304, it suits frequent-use and high-load applications. Stainless Steel SS316 is available upon request for specific projects.

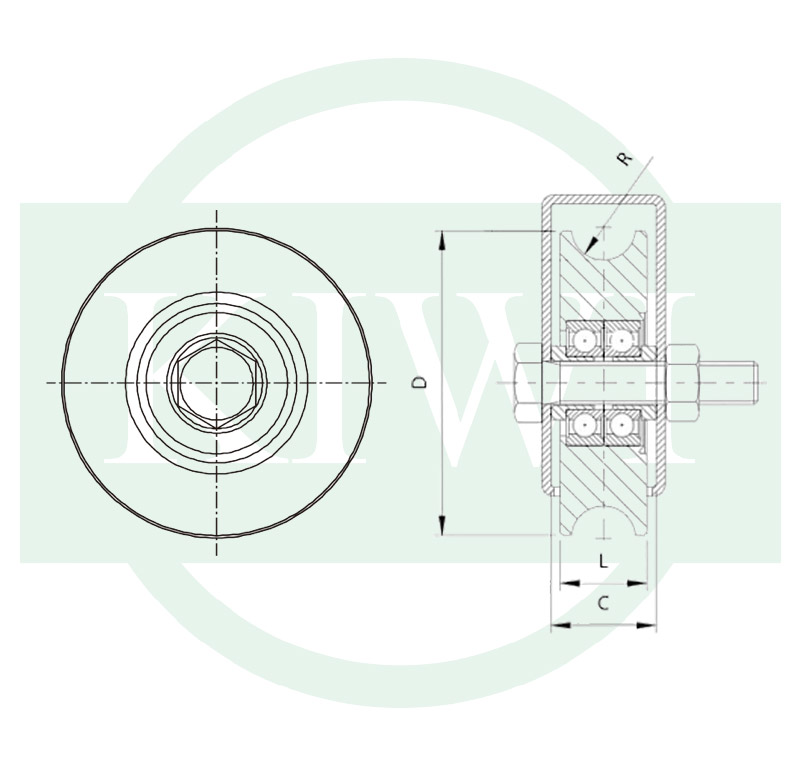

Article No. | B (mm) | C (mm) | D (mm) | L (mm) | R (mm) | Load (KG)** | Finish |
KW-815315SS.100.20 | 9.5 | 34 | Ø98 | 28 | 10.5 | 400 | Stainless Steel 304 |
KW-815315SS.120.20 | 9.5 | 34 | Ø117 | 28 | 10.5 | 420 | Stainless Steel 304 |
KW-815315SS.140.20 | 9.5 | 44 | Ø137 | 31 | 11.5 | 540 | Stainless Steel 304 |
KW-815315SS.160.20 | 9.5 | 44 | Ø157 | 33 | 11.5 | 770 | Stainless Steel 304 |
KW-815315SS.200.20 | 9.5 | 44 | Ø197 | 33 | 11.5 | 800 | Stainless Steel 304 |
Download the submittal by clicking the button below.
| Finish | Stainless Steel |
|---|---|
| Material | Stainless Steel 304, Stainless Steel 316 |
