Description

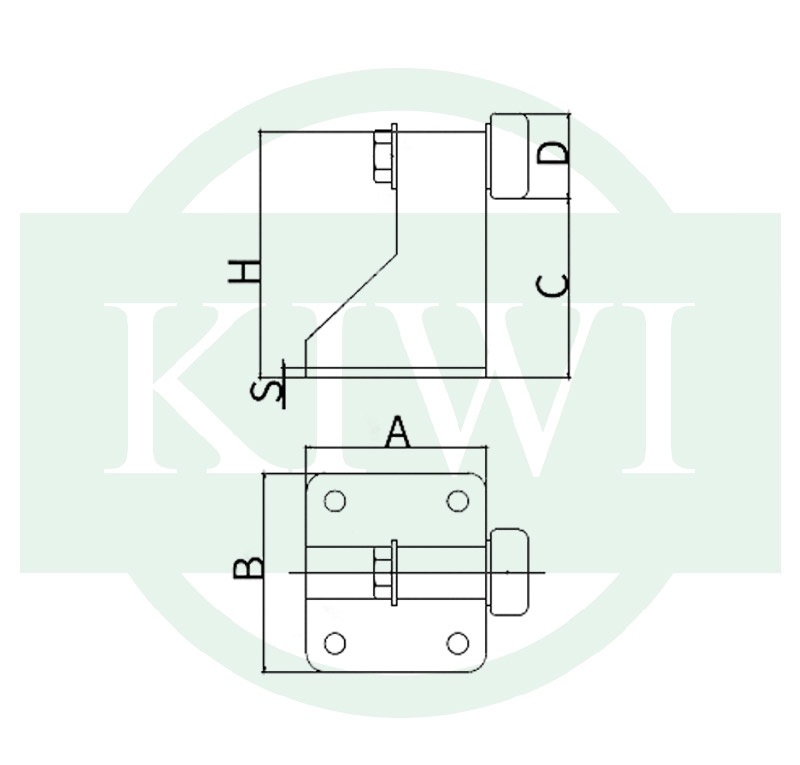

Article No. | A (mm) | B (mm) | D (mm) | H (mm) | C (mm) | S (mm) | Load (KG)** |
KW-441122.AA | 105 | 105 | Ø45 | 130 | 46 – 93 | 5 | 5000 |
Download the submittal by clicking the button below.
Contact Us
- info@kiwihardware.com
- Toronto, Ontario, Canada; L1R 0E8

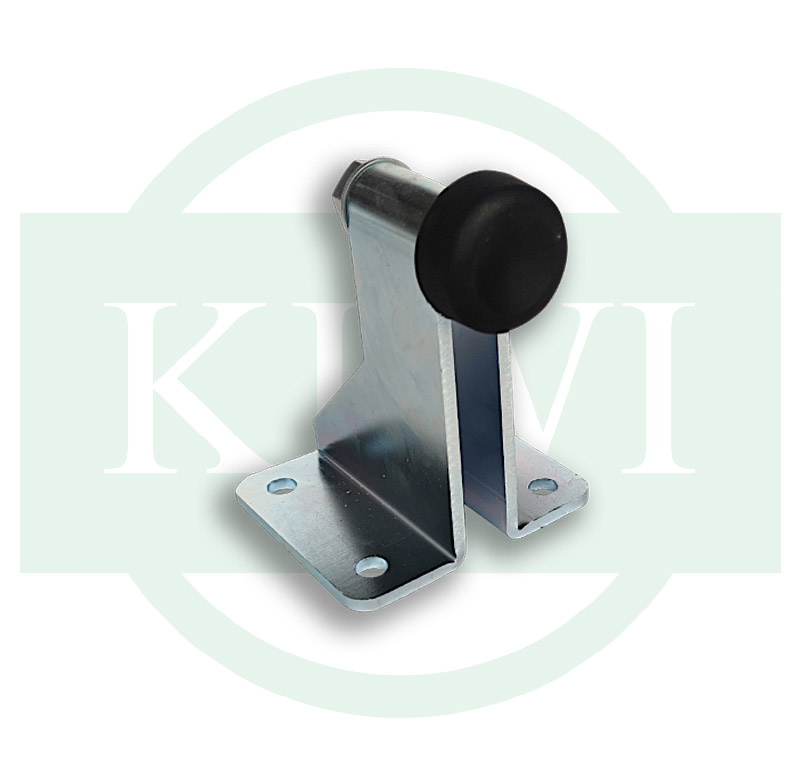

The KW-441122 Heavy Duty Adjustable Bottom Stopper is a robust gate accessory designed to safely limit the travel of sliding gates, protect gate structures from impact damage, and provide smooth, cushioned stopping action. Unlike standard stoppers, this model is adjustable, allowing installers to fine-tune the stopping height position to suit specific gate openings. Built for long-term outdoor use, it is engineered to handle the extreme loads and high operating frequency of industrial and commercial gates.
Article No. | A (mm) | B (mm) | D (mm) | H (mm) | C (mm) | S (mm) | Load (KG)** |
KW-441122.AA | 105 | 105 | Ø45 | 130 | 46 – 93 | 5 | 5000 |
Download the submittal by clicking the button below.
| Finish | Galvanized |
|---|---|
| Material | Galvanized Steel |
