Description
Specification | Detail | Specification | Detail |
Product Type | Heavy-Duty Hinge | Cotter Pin Width | 4.5mm |
Model Number | KW-1158130100SS | Security Fixing | Allen Socket Head Screw; M8 x 40mm (SS304) |
Material | Casting Solid Stainless Steel (304) | Recommended Door Weight | Up to 900 Kgs (using 3 hinges per door) |
Finish | Satin Stainless Steel (SSS) | Application | Heavy-Duty Doors, Security and Industrial use |

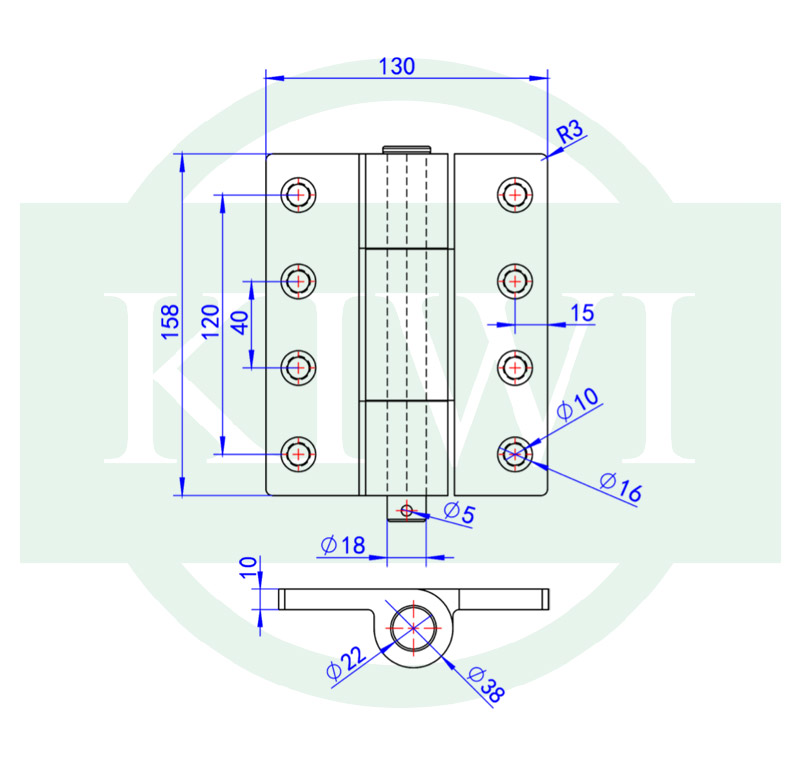

Overall Size | 158mm(H) x 130mm(W) x 10mm(T) | Hinge Type | Lift-off type with secure fixing |
Pin Diameter | Ø 18mm | Corrosion Resistance | High (SS304 material) |
Download the submittal by clicking the button below.
