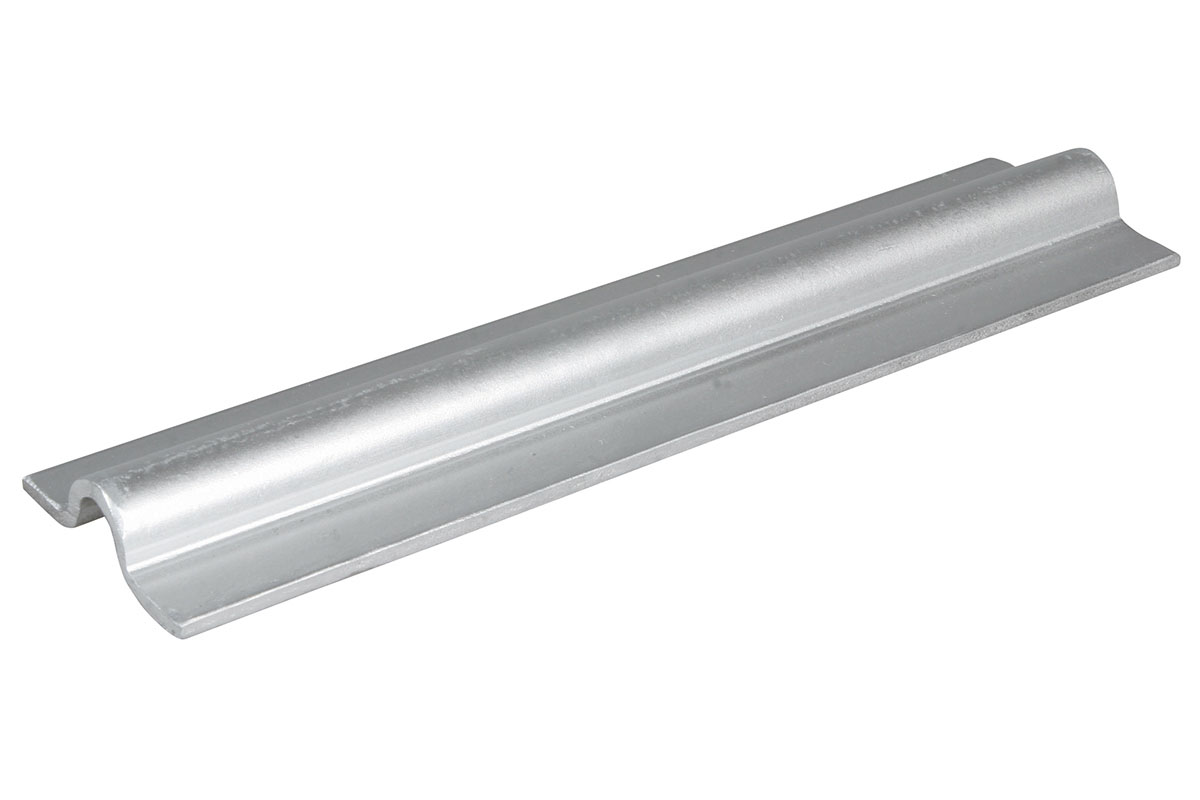

Bottom Rails | Bottom Sliding System
Material: Electro-galvanized Steel
Parts subject to wear: Rail and Bottom Wheel contact surface
Maintenance Frequency: 3 years
Product Description

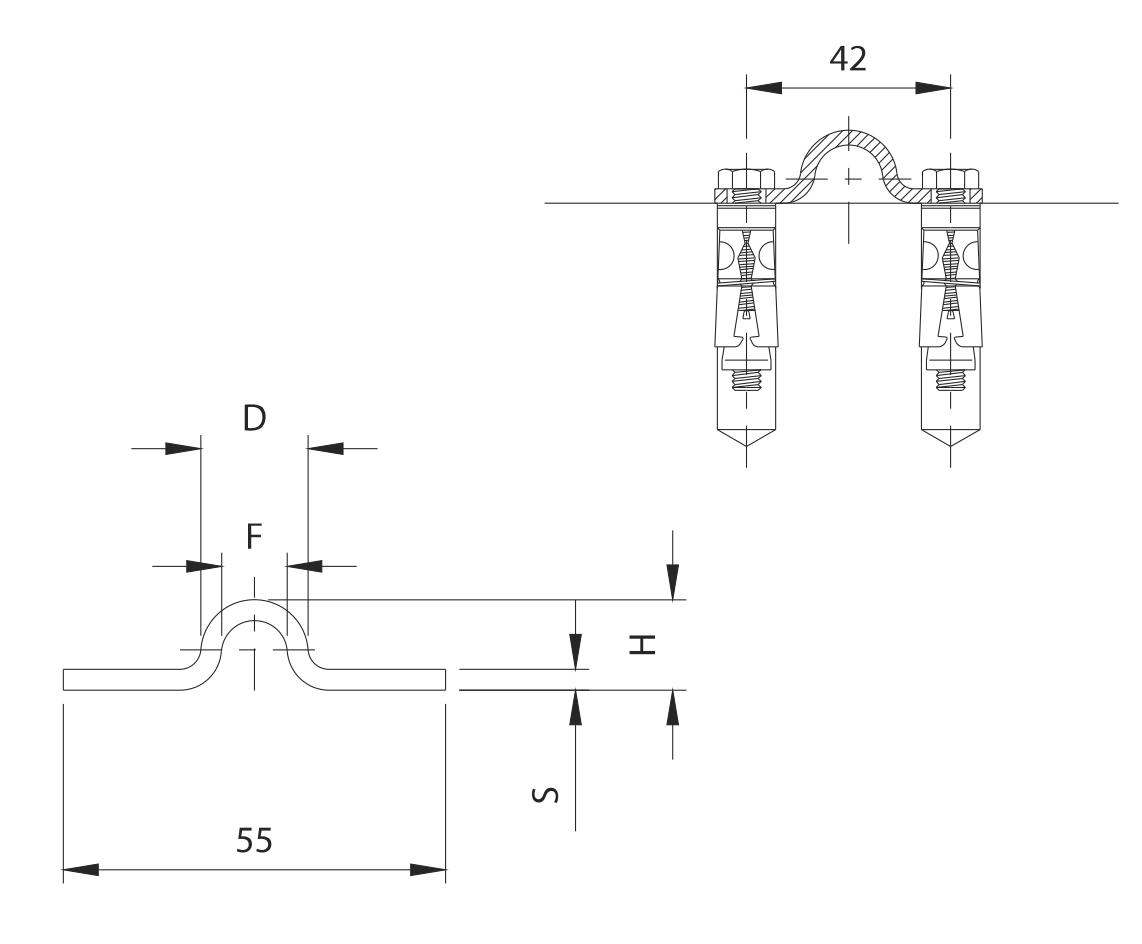

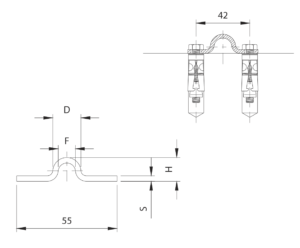

| KW-896369 | D | F | L | H | S |
| 15.3000 | Ø 15 | Ø 9.5 | 3000 | 13 | 3.5 |
| 15.6000 | Ø 15 | Ø 9.5 | 6000 | 13 | 3.5 |
| 19.3000 | Ø 19 | Ø 12 | 3000 | 16 | 3.5 |
| 19.6000 | Ø 19 | Ø 12 | 6000 | 16 | 3.5 |
