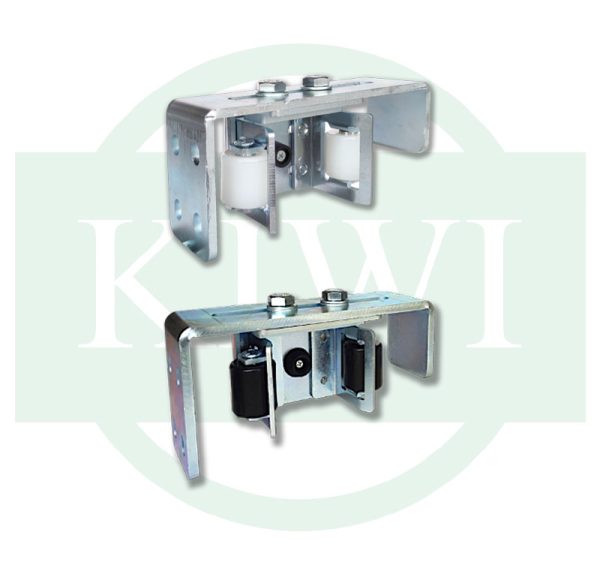

The KW-965465/2L Top Guide Plate with 2 Guide Rollers is an essential component used in sliding gate systems to maintain smooth, stable, and aligned movement of the gate during operation. Typically fixed at the top frame of the gate entrance, guiding the gate panel as it slides open or closed. By stabilizing the gate vertically and laterally, top guide plates ensure reliable performance, reduce wear on rollers, and prevent accidental derailment.

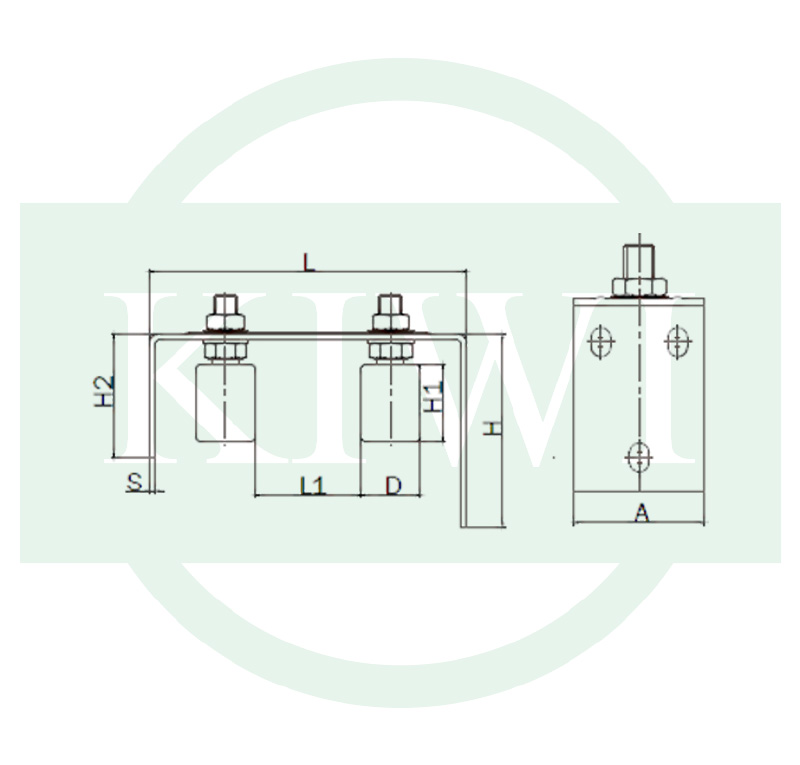

Article No. | A (mm) | D (mm) | H (mm) | H1 (mm) | H2 (mm) | L (mm) | L1 (mm) | S (mm) | Load (KG)** |
KW-965465/2L.160 | 55 | Ø40 | 60 | 40 | 40 | 160 | 33.5 – 70.5 | 4 | 800 |
KW-965465/2L.200 | 68 | Ø40 | 100 | 60 | 65 | 200 | 45-89 | 4 | 1000 |
Download the submittal by clicking the button below.
| Finish | Galvanized |
|---|---|
| Material | Galvanized Steel |
